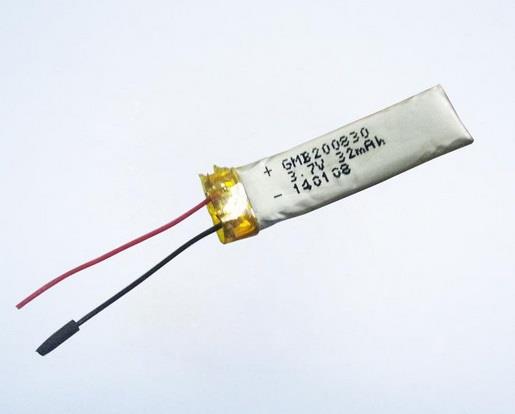

1. Product No.: HD200830-1S1P
2. Rated voltage: 3.7V
3. Rated capacity: 32mAh
4. Minimum capacity: 31mAh
5. Battery internal resistance: ≤400
6. Overcurrent protection: 1-3A
7. Continuous discharge current: 16mA
8. Maximum discharge current: 32mAh
9. Standard charging voltage: 4.2V
10. Working temperature: charging: 0~45℃, discharging: -20~60℃
11. Battery size:
    Length: MAX 30mm
    Width: MAX 8.0mm
    Thickness: MAX2.0mm
12. Outlet specifications: UL1571/26AWG wire length 50±5mm (can be customized according to customer requirements)

13. Safety performance: specific overcharge protection, overdischarge protection, overcurrent protection and short circuit protection

1. Product No.: HD200830-1S1P
2. Rated voltage: 3.7V
3. Rated capacity: 32mAh
4. Minimum capacity: 31mAh
5. Battery internal resistance: ≤400
6. Overcurrent protection: 1-3A
7. Continuous discharge current: 16mA
8. Maximum discharge current: 32mAh
9. Standard charging voltage: 4.2V
10. Working temperature: charging: 0~45℃, discharging: -20~60℃
11. Battery size:
    Length: MAX 30mm
    Width: MAX 8.0mm
    Thickness: MAX2.0mm
12. Outlet specifications: UL1571/26AWG wire length 50±5mm (can be customized according to customer requirements)

13. Safety performance: specific overcharge protection, overdischarge protection, overcurrent protection and short circuit protection
