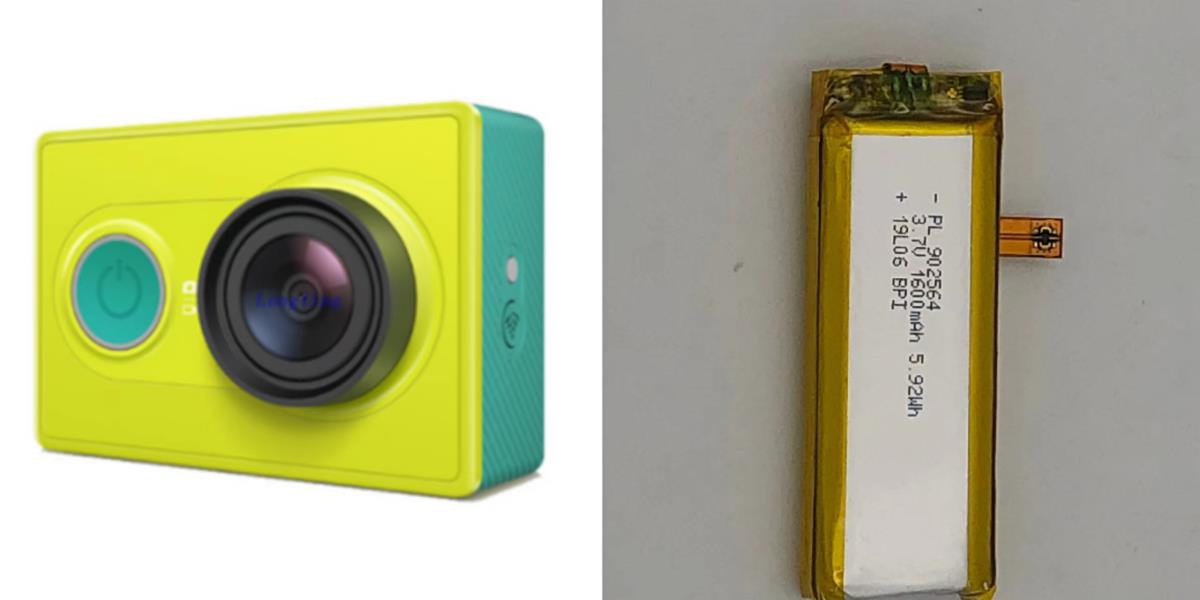

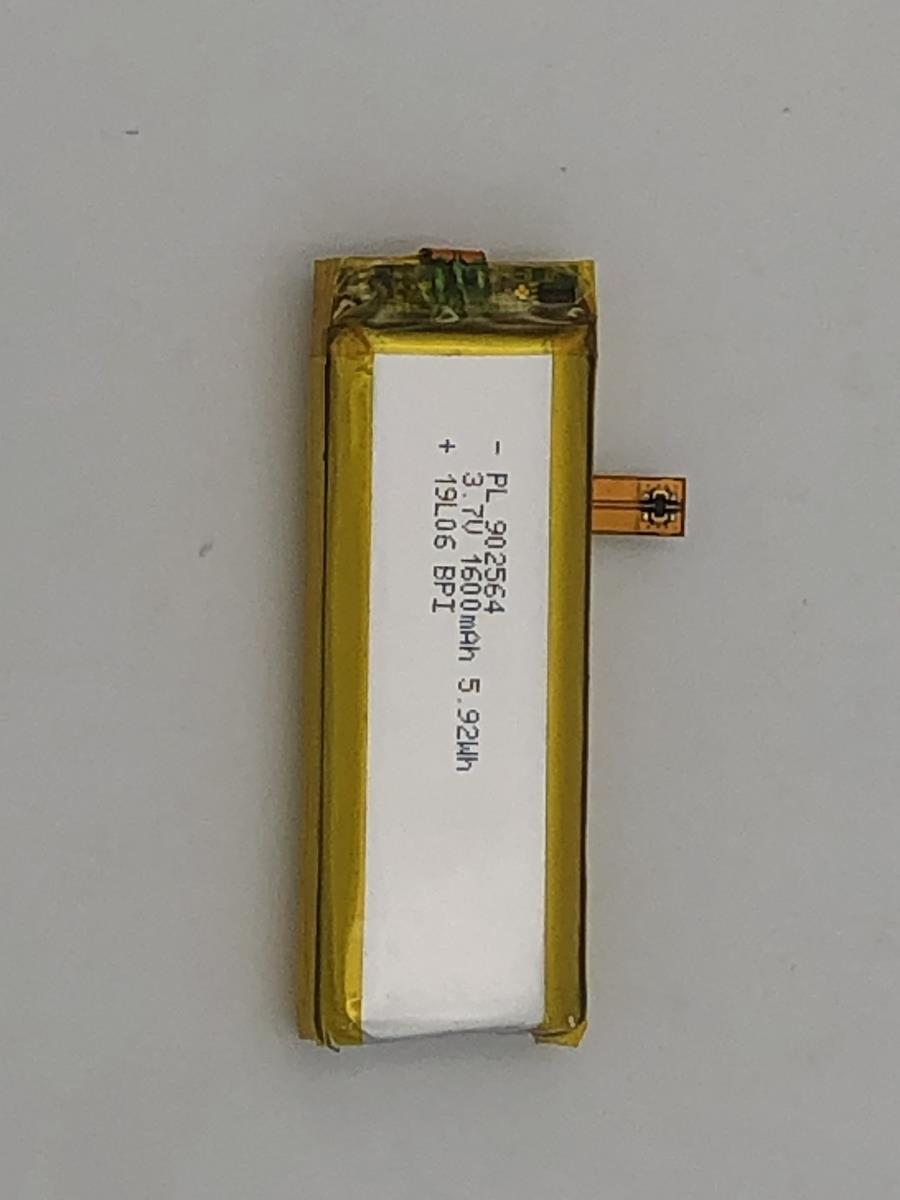

Polymer cell
1. Product number: HD3V7-1600mAh
2. Nominal voltage: 3.7V
3. Rated capacity: 1600mAh
4. Minimum capacity: 1550mAh
5. Battery internal resistance: ≤250m?
6. Overcurrent protection: 4-8A
7. Continuous discharge current: 320mA
8. Maximum discharge current: 1600mAh
9. Standard charging voltage: 4.2V
10. Working temperature: charging: 0~45℃, discharging: -20~60℃
11. Battery size:
Length: MAX 92mm
Width: MAX 26mm
Thickness: MAX 5.5mm
12. Output terminal: FPC flexible cable (can be customized)
13. Safety performance: with overcharge protection, overdischarge protection, short circuit protection, overcurrent protection, etc.
1. Product number: HD3V7-1600mAh
2. Nominal voltage: 3.7V
3. Rated capacity: 1600mAh
4. Minimum capacity: 1550mAh
5. Battery internal resistance: ≤250m?
6. Overcurrent protection: 4-8A
7. Continuous discharge current: 320mA
8. Maximum discharge current: 1600mAh
9. Standard charging voltage: 4.2V
10. Working temperature: charging: 0~45℃, discharging: -20~60℃
11. Battery size:
Length: MAX 92mm
Width: MAX 26mm
Thickness: MAX 5.5mm
12. Output terminal: FPC flexible cable (can be customized)
13. Safety performance: with overcharge protection, overdischarge protection, short circuit protection, overcurrent protection, etc.
